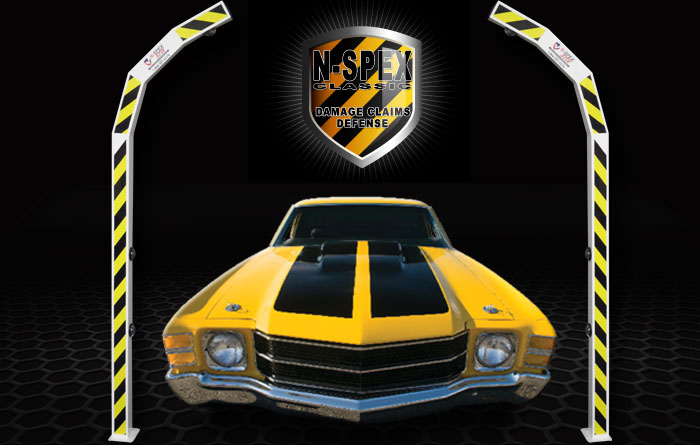

n spex clasic main image - N-SPEX STIX Classic Vehicle Condition Documentation System

N-SPEX STIX


  • 6 Cameras For total coverage
  • 650 TV Lines
  • 960H 33 larger video

Factory Direct Price

$2990.00

Not Available For Online Order
SPECIAL BUILD ITEM
Call our engineers at:

1-866-301-CCTV

N-SPEX STIX System does not include a DVR please go here to see our selection of Digital Video Recorders DVR’S

patent info - N-SPEX STIX Classic Vehicle Condition Documentation System

n spex stix page top - N-SPEX STIX Classic Vehicle Condition Documentation System

The purpose of the N-SPEX System is to document the condition of every vehicle that enters and Exits your facility.

Customers that use the N-SPEX system have reported that the system has paid for itself in less than 6 months due to the deductable savings on their insurance.

In fact, one Customer says that 2 claims in the same month that were avoided with solid evidence from the N-SPEX system, more than paid for the entire N-SPEX equipment costs.

The N-SPEX vehicle condition documentation system Entry and Exit Arches document the condition of every vehicle that enters and exits your property.

Each pair of N-SPEX STIX contains:
6 High-Resolution – Pre-Assembled – Pre-Focused – and Pre-Mounted
Sony 960H Ex-view HAD CCDII, 650 TV Line Cameras!

N-Spex Camera Drawing

N-SPEX Cameras are so small as to go unnoticed, yet are rugged and completely vandal-proof. Sealed, watertight housings are weatherproof and high-pressure wash-down resistant (NEMA IP-66 rated). These High-Resolution cameras are made from rugged metal and feature a thick Lexan viewing dome with adjustable camera angle depending on how far away from the entrance you wish to start seeing the vehicle.

n-spex camera These High-Resolution cameras are pre-adjusted and pre-focused to provide the perfect solution to the viewing angles and distances you need to adequately document the condition of vehicles entering and leaving your facility. This makes installation a snap!

n-spex camera viewsn-spex stix details

The N-SPEX STIX will give you a view of:
Left Side STIX: Left Top of Vehicle, left Side, Front of Vehicle & License Plate
Right Side STIX: Right Top of Vehicle, Right Side, Rear of Vehicle & License Plate

n-spex stix details

specs download icon - N-SPEX STIX Classic Vehicle Condition Documentation System

N-SPEX STIX Classic – Specifications

Dimensions 9′ (feet) Tall x 4″(inch) Square – Mounting Base 8″ x 6″
Surface Attachment 3 – 3/8″ x 3″ Concrete Anchors (included)

Cameras

Image sensor 1/3″ Sony 960H Ex-view HAD CCD II
Active pixels NTSC: 976(H)×494(V) – PAL:976(H)×582(V)
H. Resolution 650 TV Lines
Synchronization system Internal
Scanning system NTSC : 525 Lines PAL : 625 Lines 2:1 Interlaced
Video output 1.0Vp-p Composite 75 Ohms
S/N ratio More than 52dB (AGC Off)
Min. Illumination 0.1Lux
Shutter Speed NTSC:1/60~1/100,000 sec. PAL:1/50~1/100,000 sec.
Gamma Correction Standard y = 0.45
White Balance 1,800 °K ~ 10,500 °k Auto
Gain Control Standard : -6dB ~ 44.8dB Auto
Smear Effect 0.005{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b}
Power source 12v DC
Power source 110mA
Lens 3.6mm
MTBF 80,000 Hours
Iris Control Electronic
Operating temp./Humidity 14°F~ 120°F (Humidity : 0{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} RH ~ 90{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} RH)
IP Rating 66
Dimensions 3.10 Diameter x 2.25 Length
Weight >1 lbs
Assembly Instructions
