n spec mega tvi 1 - N-SPEX MEGA STIX HD-TVI


  • 6 – 2.2 Megapixel HD-TVI Cameras
  • 1080p video Resolution
  • 360{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} larger video than 960H

Factory Direct Price



Call our engineers at:


HD-SDi Cameras also available

N-SPEX STIX System does not include a DVR please go here to see our selection of Digital Video Recorders DVR’S

n spex mega stix page logo - N-SPEX MEGA STIX HD-TVI

Rugged Cams introduces: True 1080p HD Video

N-SPEX MEGA STIX to our line of N-SPEX STIX Vehicle Condition Documentation Systems. Each pair of MEGA STIX uses 6 state of the art HD-TVI 2.2 Megapixel cameras to record the condition of each vehicle with a total of 13.2 megapixel resolution per set. The HD-TVI Cameras transmit video over standard coax cable to the HD-TVI DVR.

The HD-TVI cameras create better video than IP cameras at a lower cost. HD-TVI Cameras have no video compression, no signal delay, they do not require a switch or router and no IP wiring.

! The N-SPEX MEGA STIX system of Entry and Exit Arches and document the condition of every vehicle that enters and or exits your property. It’s easy for customers to blame your employees or equipment for damage, but most of the time the damage is either pre-existing, (but not discovered until an after-wash inspection), or the damage occurred after the vehicle left your facility.

Without proof of when the damage was present, you can ultimately be held liable for almost any claim presented.

Carwashes that have the N-SPEX MEGA STIX system have reported that the system has paid for itself in less than 6 months.

In fact, one Operator says that 2 claims in the same month that were avoided with solid evidence from the N-SPEX system, more than paid for the entire system.

Each pair of N-SPEX MEGA STIX contains a total of 6 HD-TVI (1080p) High Resolution cameras, Pre-Assembled, Pre-Focused and Pre-Mounted.

IMAGE: Mega pixel camera These High-Resolution cameras are pre-adjusted and pre-focused to provide the perfect solution to the viewing angles and distances you need to adequately document the condition of vehicles entering and leaving your facility. This makes installation a snap!

n-spex stix details n-spex stix details

The N-SPEX STIX will give you a view of:
Left Side STIX: Left Top of Vehicle, left Side, Front of Vehicle & License Plate
Right Side STIX: Right Top of Vehicle, Right Side, Rear of Vehicle & License Plate

n-spex stix details

specs download icon - N-SPEX MEGA STIX HD-TVI

N-SPEX STIX Classic-Specifications

Dimensions 9′ (feet) Tall x 4″(inch) Square – Mounting Base 8″ x 6″
Surface Attachment 3 – 3/8″ x 3″ Concrete Anchors (included)


Image sensor 1/2.9″ Sony Cmos
total pixels NTSC: 2000(H)×1241(V) 2,482,000
Effective Pixels NTSC: 1944(H)×1092(V) 2,122,648
Resolution HD-SDI 1080p, 720p 1000tv lines
Scanning system Progressive
Video output SMTPE292M HD-SDI / CVBS: 1.0Vp-p75 Ohm
S/N ratio More than 52dB (AGC Off)
Min. Illumination 1 Lux at F1.2 / 0.1Lux (B&W)
Shutter Speed Auto: 1/30~1/60 sec.
White Balance Auto
Brightness Adjustable 0 – 20 step
Power source 12v DC
DNR High
Lens 3.7mm
Language English
Day/Night Auto
Operating temp./Humidity 14°F~ 122°F (Humidity : 30{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} RH ~ 80{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} RH)
Signal Transmission RG59 300′
Dimensions 3.31 Diameter x3.29 Length
Weight >1 lbs

Installation / Technical Information
Power Consumption
Maximum Distance for 12v DC over standard 18/2 power wire for each N-Spex Stix is 200′ feet from the power source

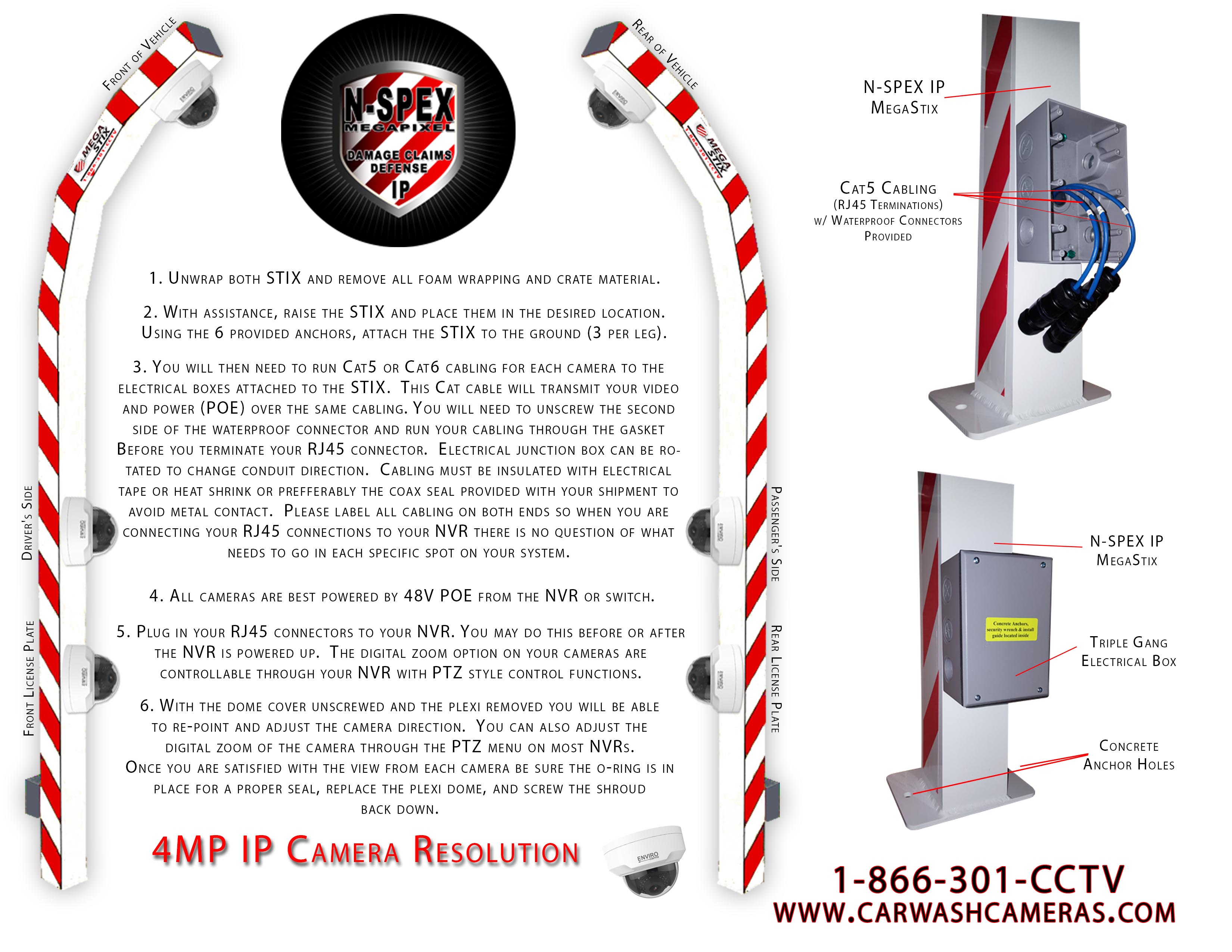

Assembly Instructions
