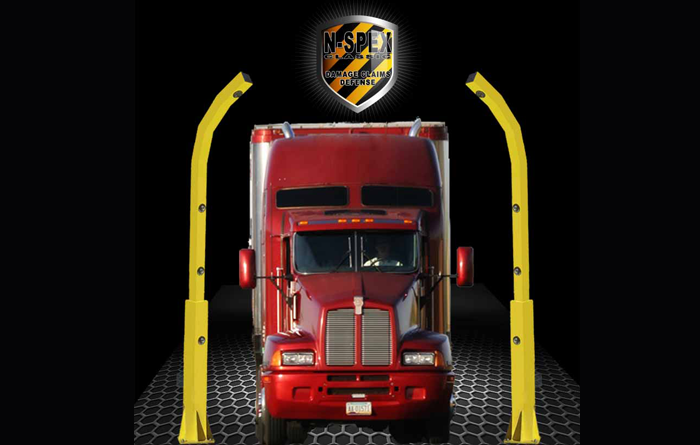

n spex trux stix main image - N-SPEX STIX TRUX

N-SPEX STIX TRUX

  • 8 Cameras For total coverage

Factory Direct Price

$7340.00



SPECIAL BUILD ITEM
Call our engineers at:

1-866-301-CCTV

HD-SDi Cameras also available


N-SPEX STIX System does not include a DVR please go here to see our selection of Digital Video Recorders DVR’S

patent info - N-SPEX STIX TRUX

n spex trux stix logo - N-SPEX STIX TRUX

A New Addition to the N-SPEX Vehicle Inspection System family of vehicle condition Inspection & Documentation Systems.

View & Document the front, back, sides and top of all Trucks, Trailers, Rail Cars, etc. Truck / Trailer / Cargo / Container / Rail Car Inspection Condition & Documentation System N-SPEX TRUX STIX

  • 8 Hi-Resolution Cameras (500 Lines) with ”Aim & Lock” Swiveling Lenses

  • Standard Height is 13’ 6” (custom heights and # of cameras available)

  • Standard safety yellow powder coated aluminum (custom powder coat colors available)

nspex stix camera diagram - N-SPEX STIX TRUX

N-SPEX Cameras are so small as to go unnoticed, yet are rugged and completely vandal-proof. Sealed, watertight housings are weatherproof and high-pressure wash-down resistant (NEMA IP-66 rated). These High-Resolution cameras are made from rugged metal and feature a thick Lexan viewing dome with adjustable camera angle depending on how far away from the entrance you wish to start seeing the vehicle.

nspex camera arrows - N-SPEX STIX TRUXThese High-Resolution cameras are pre-adjusted and pre-focused to provide the perfect solution to the viewing angles and distances you need to adequately document the condition of vehicles entering and leaving your facility. This makes installation a snap!

nspextrux filmstrip copy - N-SPEX STIX TRUXnspex labeled - N-SPEX STIX TRUX

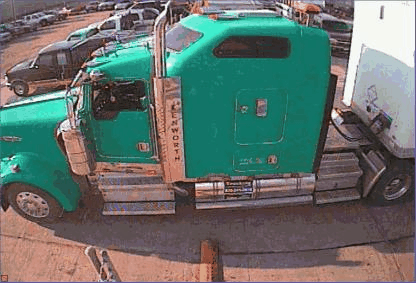

The N-SPEX TRUX STIX will give you a view of:
Left Side STIX: Left Top of Vehicle, left Side Upper, left Side lower, Front of Vehicle & License Plate
Right Side STIX: Right Top of Vehicle, Right Side Upper, Right Side lower, Rear of Vehicle & License Plate

specs download icon - N-SPEX STIX TRUX

N-SPEX STIX HD-TVI – Specifications

Dimensions 13′ 6″ Tall x 6″(inch) Square
Surface Attachment 4 – 3/8″ x 3″ Concrete Anchors (included)

Cameras

Image sensor 1/2.9″ Sony CMOS (XM-222)
Effective pixels 1944(H) x 1092(V)
H. Resolution 1080p
Synchronization system Internal
Scanning system Progressive
Video output TVI / 1.0Vp-p Composite 75 Ohms
S/N ratio More than 52dB (AGC Off)
Min. Illumination 0.1Lux
Shutter Speed Auto (1/30sec – 1/60,000sec)
Gamma Correction Standard y = 0.45
White Balance 1,800 °K ~ 10,500 °k Auto
Gain Control Standard : -6dB ~ 44.8dB Auto
Smear Effect 0.005{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b}
Power source 12v DC
Power source 110mA
Lens 4mm
MTBF 80,000 Hours
Iris Control Electronic
Operating temp./Humidity 14°F~ 120°F (Humidity : 0{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} RH ~ 90{26f0a7a72b13002dfc0db7b5a8ffdfc5973b58c93ea4d94fceb370af83af206b} RH)
IP Rating 66
Dimensions 3.10 Diameter x 2.25 Length

Installation / Technical Information
Power Consumption
440mA
Maximum Distance for 12v DC over standard 18/2 power wire for each N-Spex Stix is 215‘ feet from the power source

Assembly Instructions
